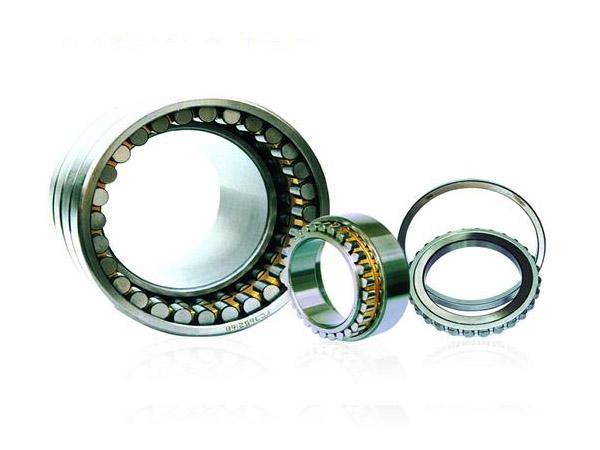

Cylindrical roller bearing four rows
| Cylindrical roller bearing four rows |
|
商品詳細介紹：
圓柱滾子軸承－四列： 圓柱滾子軸承是一種可分離型軸承。其中，外圈與滾子是線性接觸，摩擦系數(shù)小，承受徑向載荷能力較大。適合于電機、汽車、傳動軸、齒輪軸等。雙列圓柱滾子軸承適用于機床主軸。 |
|
| 軸承型號 |
基本尺寸 |
基本額定載荷(kN) |
重量(kg) |
| dxDxB |
動(Cr) |
靜(Cor) |
| FC2640125 |
130x200x125 |
530 |
1200 |
14.60 |
| FC3045120 |
150x225x120 |
645 |
1450 |
16.70 |
| FC3246130 |
160x230x130 |
665 |
1705 |
16.90 |
| FC3248124 |
160x240x124 |
685 |
1530 |
20.30 |
| FC3248168 |
160x240x168 |
685 |
1530 |
26.40 |
| FCD3446160 |
170x230x160 |
1100 |
2360 |
20.00 |
| FC3452120 |
170x260x120 |
660 |
1790 |
24.60 |
| FC3652124 |
180x260x124 |
735 |
1730 |
21.70 |
| FC3652168 |
180x260x168 |
1070 |
2790 |
30.20 |
| FC3652168/YA3 |
180x260x168 |
1070 |
2790 |
30.10 |
| FC3854168 |
190x270x168 |
950 |
2430 |
30.20 |
| FC3854168/YA3 |
190x270x168 |
950 |
2430 |
29.90 |
| FC3854170/YA3 |
190x270x200 |
950 |
2430 |
30.20 |
| FC4056188 |
200x290x192 |
985 |
2580 |
35.70 |
| FC4462192/YA3 |
220x310x192 |
1300 |
1910 |
45.80 |
| FC4462225 |
220x320x210 |
1450 |
4050 |
53.90 |
| FC4666206/YA3 |
230x330x206 |
1350 |
3800 |
56.50 |
| FC4866220/YA3 |
240x330x220 |
1620 |
4850 |
56.50 |
| FC4866220 |
240x330x220 |
1620 |
4850 |
56.70 |
| FC4868192A |
240x330x220 |
|
|
|
| FC4872220 |
240x360x200 |
1700 |
4410 |
78.00 |
| FC4872220A/C4YA3 |
240x360x200 |
1700 |
4410 |
78.00 |
| FC5072220/YA3 |
250x360x220 |
1500 |
4250 |
76.90 |
| FC5274200 |
260x370x200 |
1570 |
4250 |
73.00 |
| FC5274220/YA3 |
260x370x220 |
1760 |
4900 |
79.20 |
| FC5274220 |
260x370x220 |
1760 |
4900 |
80.00 |
| FC5476230/YA3 |
270x380x230 |
1720 |
4800 |
80.20 |
| FC5478230 |
270x390x236 |
2100 |
5950 |
97.80 |
| FC5678220 |
280x390x220 |
1790 |
5150 |
86.50 |
| FCDP5678275 |
280x390x275 |
2200 |
6250 |
102.00 |
| FC6490240/YA3 |
320x450x240 |
2460 |
6720 |
119.00 |
| FCD72102370 |
360x510x370 |
3850 |
11400 |
220.00 |
| FCDP74104380 |
370x520x380 |
3900 |
12000 |
296.00 |
| FCDP88124450 |
440x620x450 |
5200 |
15800 |
452.00 |
| FCDP88124450/YA6 |
440x620x450 |
5200 |
15800 |
452.00 |
| FCD96130450 |
480x650x450 |
4750 |
15400 |
419.00 | |
|
|
